| Parameter | Specification |
|---|---|

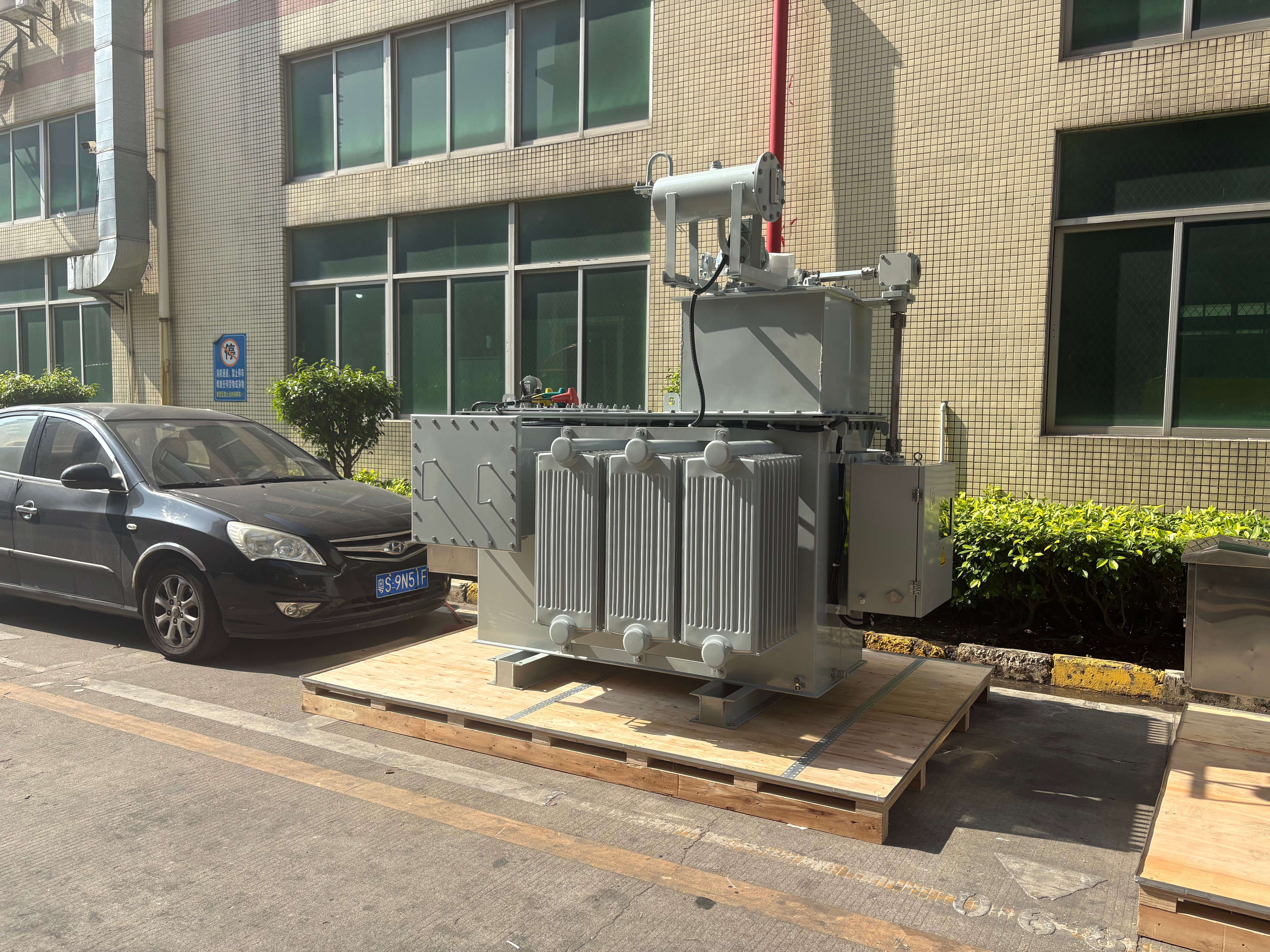

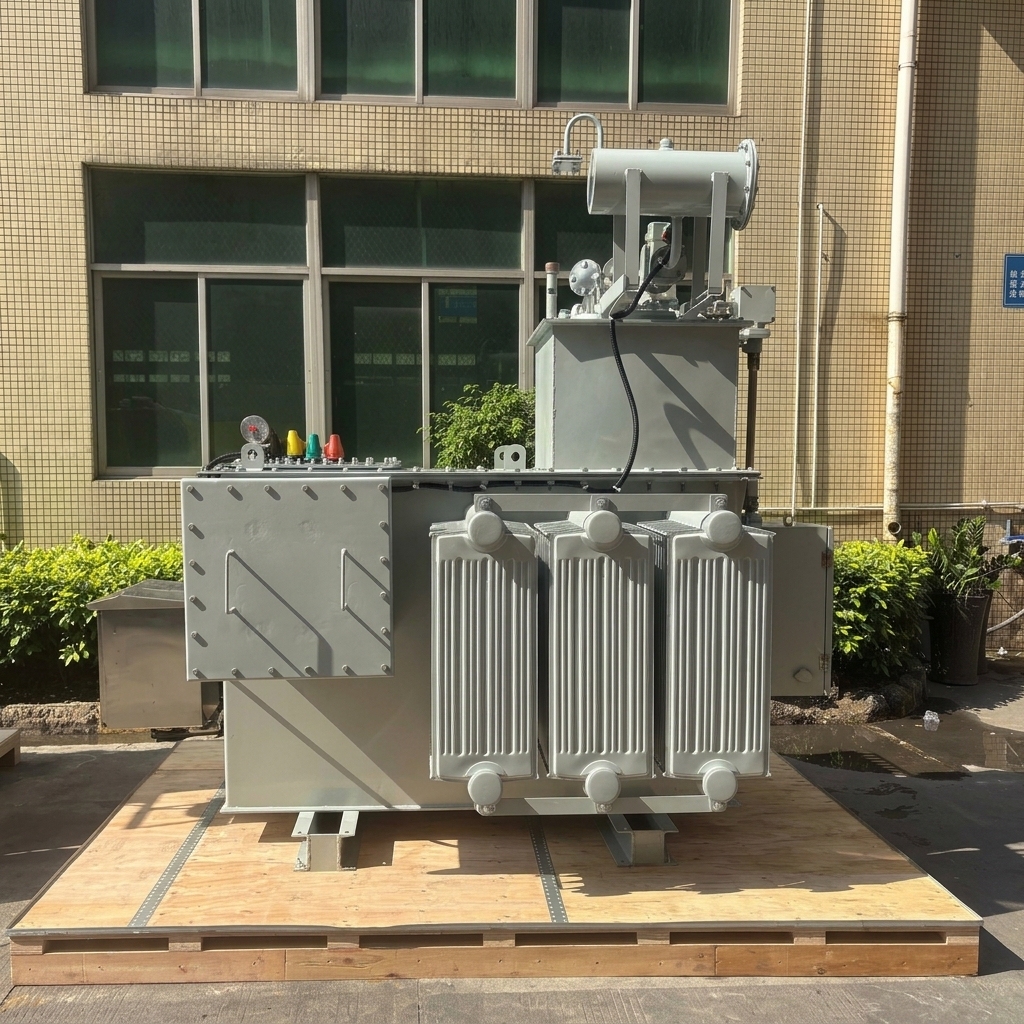

| Product Name | On Load Tap Changing Transformer (OLTC) |

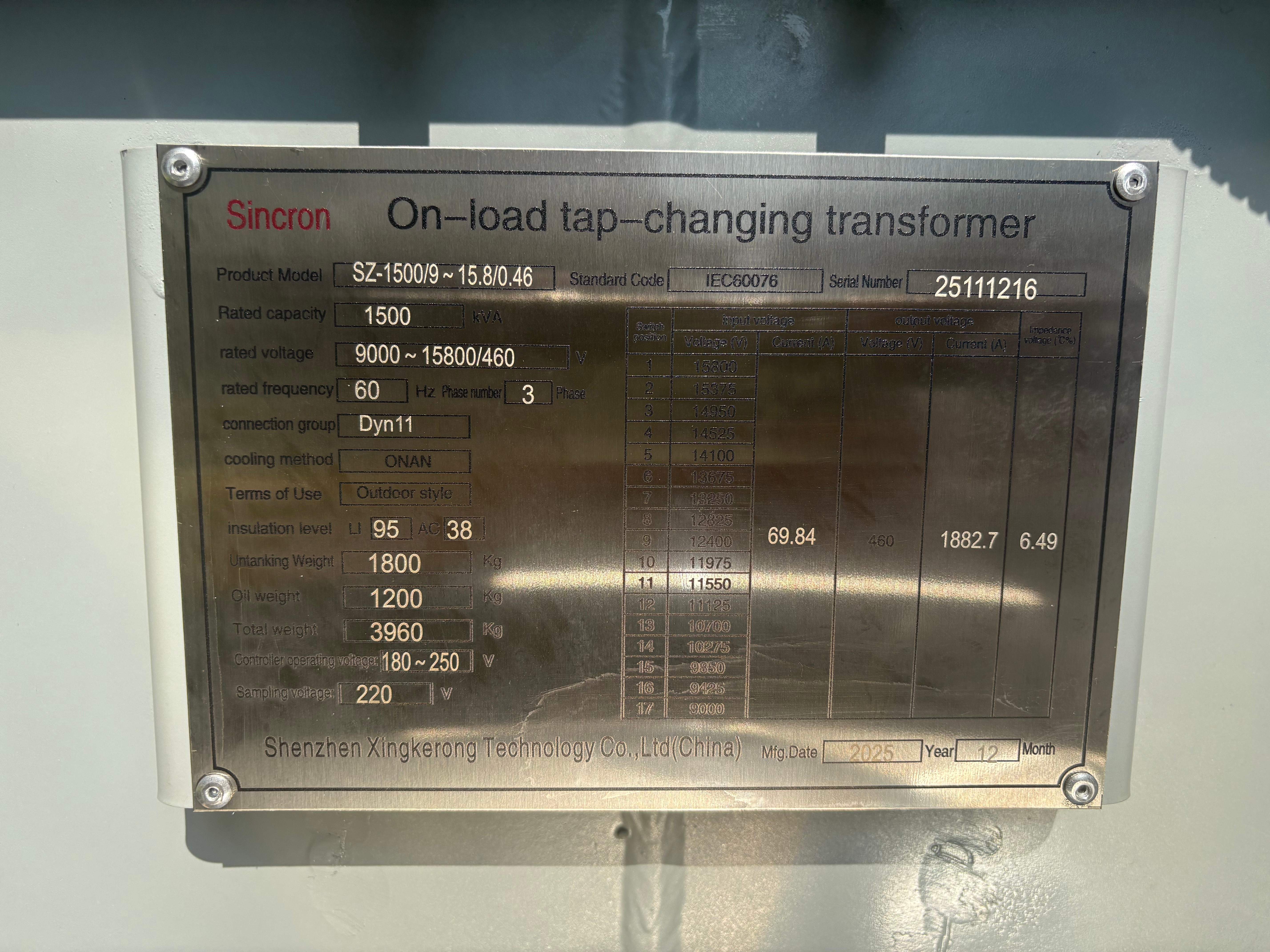

| Product Model | SZ-1500/9~15.8/0.46 |
| Standard Code | IEC 60076 |
| Rated Capacity | 1500 kVA (1.5 MVA) |
| Rated Voltage (HV) | 9000V ~ 15800V (9kV–15.8kV) |
| Rated Voltage (LV) | 460V |
| Rated Frequency | 60 Hz |
| Phase | 3 Phase |
| Connection Group | Dyn11 |
| Cooling Method | ONAN (Oil Natural Air Natural) |

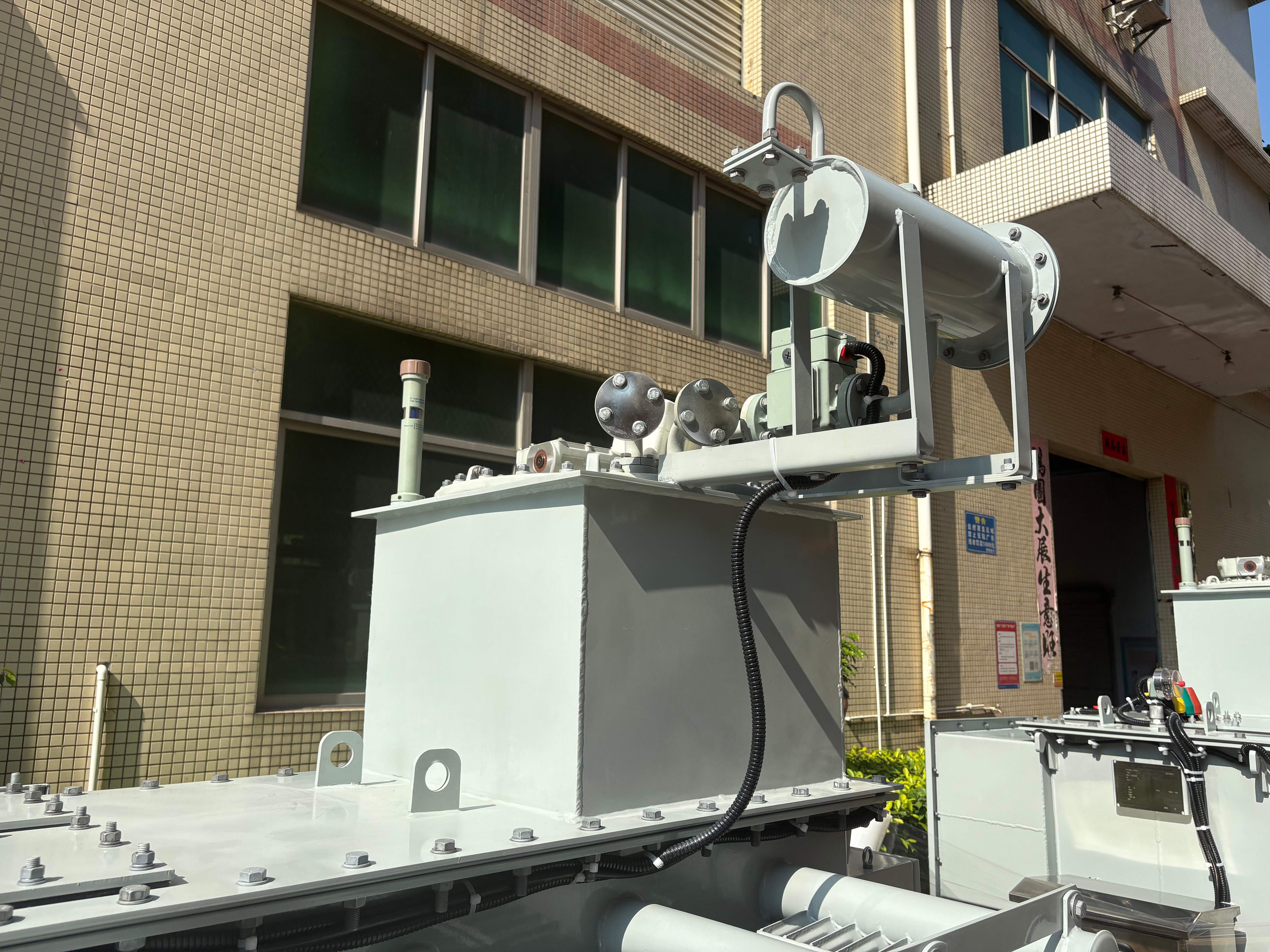

| Tap Changer Type | On-Load Tap Changer (OLTC), 17 positions |
| Short-Circuit Impedance | 6.49% |
| Insulation Level | LI 95 kV / AC 38 kV |
| No-Load Rated Current (HV) | 69.84 A |
| Rated Current (LV) | 1882.7 A |
| Application Environment | Outdoor Type |
| Winding Material | Copper |
| Untanking (Core & Coil) Weight | 1800 kg |
| Oil Weight | 1200 kg |
| Total Weight | 3960 kg |
| Certification | IEC, CE (on request) |
| Customization | OEM / ODM accepted |
| Place of Origin | China |
| Question 1.: | Are you a manufacturer? |
| Reply: Absolutely.Our factory is a true industrial power supply manufacturer.
Welcome to verify our factory any time! |
|
| Question 2.: | How is the quality of your transformer? |
| Reply: Our factory uses internationally renowned brands of non oriented silicon steel or oriented silicon steel to achieve low iron loss and high magnetic induction. | |
| Question 3.: | What is the delivery time? |
|
Reply:The standard delivery time is 7-10 working days. it is more than 15 working days. |
|
| Question 4.: | Can we customize the logo? |
| Reply:certainly.Our own factory supports ODM/OEM orders. | |
| Question 5.: | What is the minimum order quantity? |
| Reply:Minimum order quantity for standard products is 1 unit. | |
| Question 6.: | Why choose SINCRON products? |
|
Replay: A. Material: SINCRON uses international first-line brand raw materials and guarantees 100% brand new, allowing you to clearly understand where your cost consumption is. |
|
